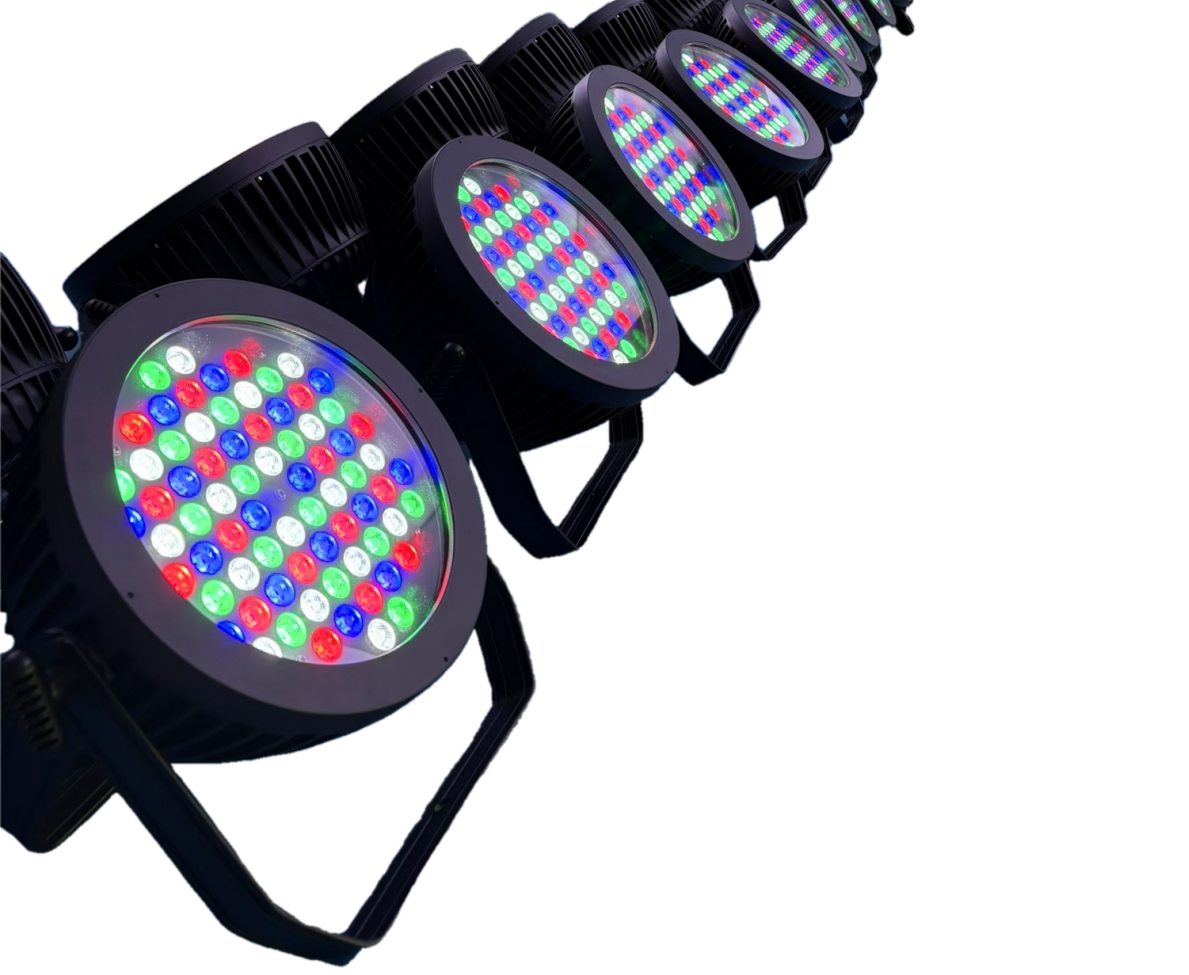

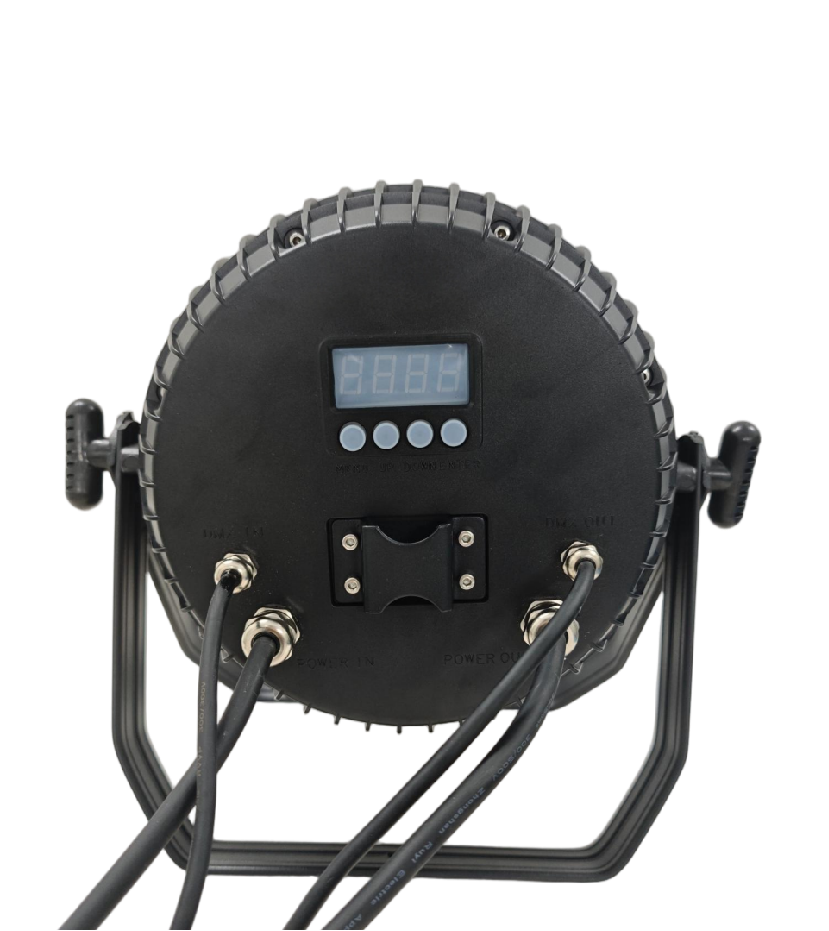

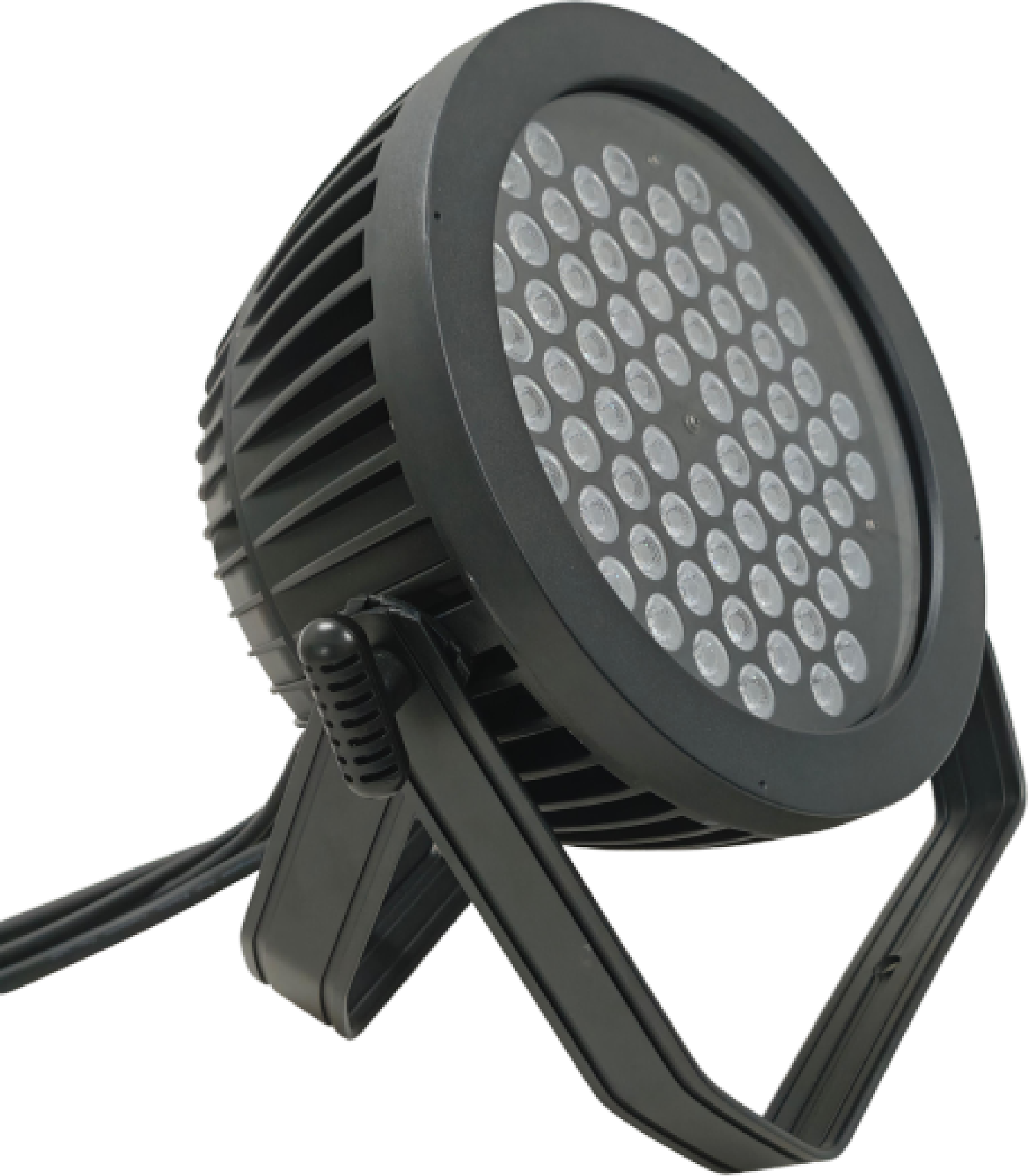

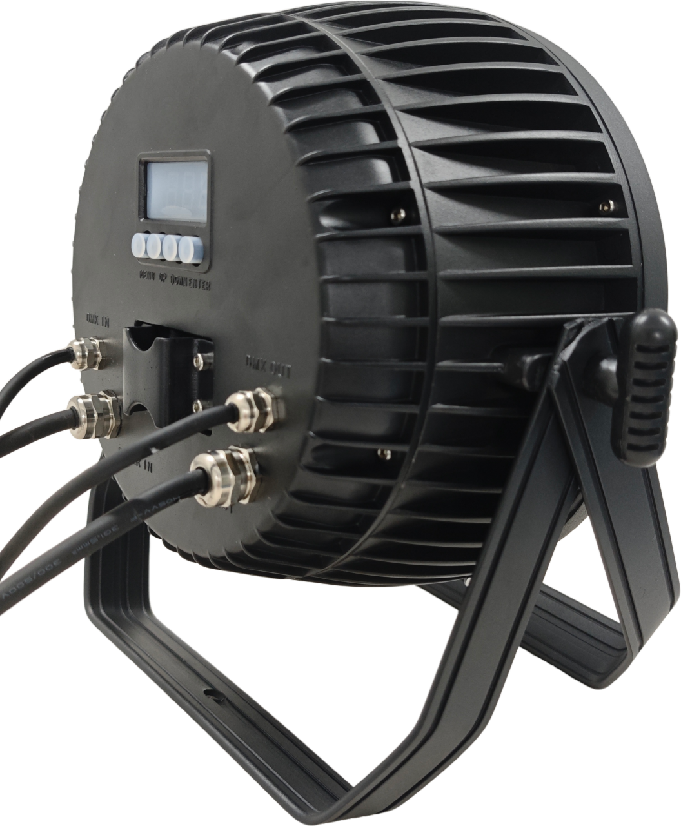

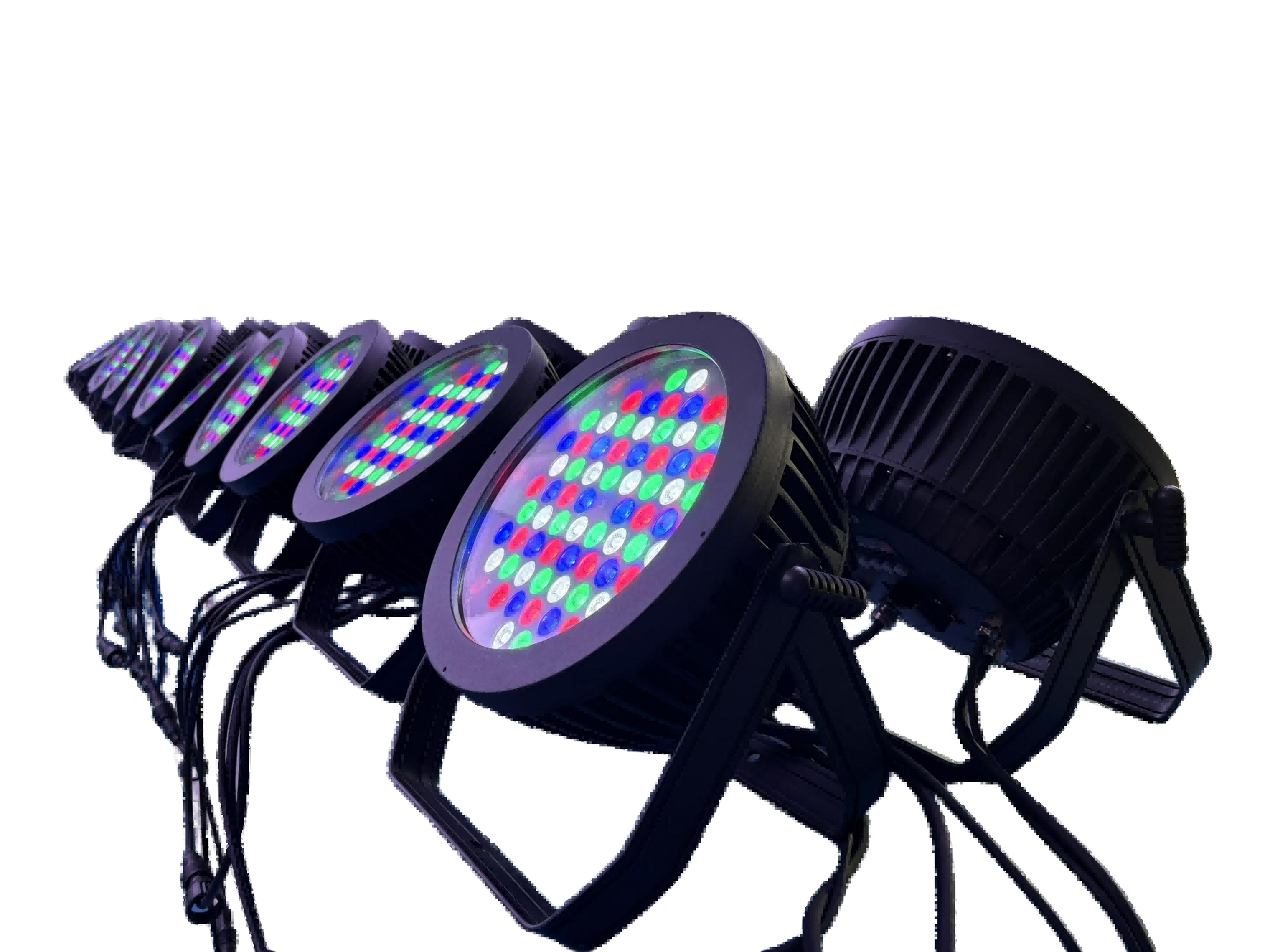

JY-72IP Flood Light
Item No.: JY-IP65 72×3W
Effect Functions: Full color (color gamut coverage: >50% sRGB)
Color Temperature: 2700K-6500K, color temperature accuracy: within ±150K
CRI (Ra): ≥80
Housing Material: Aviation aluminum alloy body, 4mm high-strength tempered glass light-emitting surface
Power Consumption: 216W
Combined Luminous Flux: >16,200lm
Beam Angle: 30°
Input Voltage: AC 220V
Control Modes: DMX-512 control, 6-channel performance control
(Channel 1: R, Channel 2: G, Channel 3: B, Channel 4: W, Channel 5: Strobe, Channel 6: Color Temperature)
Control Accuracy: Overall linkage, single-segment controllable per fixture; 0-100% linear 16-bit high-precision dimming with adjustable dimming curve; uniform brightness change and fade in/out without jitter; uniform color mixing without color shift
Protection: Salt spray resistant. The fixture surface adopts high-temperature treatment, and both the fixture and waterproof connectors have passed the neutral salt spray test.
Protection Rating: IP65
Refresh Rate: ≥2000Hz, no flicker at ≤30% low gray brightness
Net Weight: 6.4kg
Packing Specification: Normally 4 lamps per carton
Gross Weight (Packaged): 28kg
Product Packaging Dimensions: 610×600×370mm
